Hydraulic Hose Crimper 3''
Item
Description
YHHC-48C

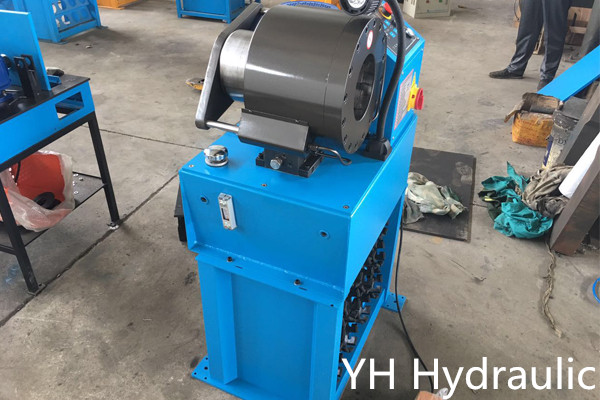

YHHC-48 is a hose crimping machine 3’’. It can crimp the six wire hoses from 3/16’’ to 3’’. YHHC-48C is equipped with 21 sets of dies including a transition die, one die self, one quick change tool and one computer controlled system. YH Hydraulic offers commonly used voltages such as 380V, 220V, 280V, etc. It is important to confirm the voltage and motor power before the purchase with our sales department.
From the following, it shows the technical data of YHHC-48C.
| Technical Data | YHHC-48C |
| Max hose size | 3’’ 4S |
| Swaging range(mm) | Φ6-130 |
| Main die shoe length(mm) | 110 |
| Standard voltage | 380V/50HZ |
| Motor power | 4kw |
| Optional voltage and motor | 220V/2.2KW |
| Pump(L/min) | 19L |
| Number of swagings/hour | 800 |
| Noise level(dB) | 70 |
| Max opening(mm) | Φ+31mm |
| Crimping force(kN) | 8610 |
| Electic limit switch | Included |
| Electronic control | Included |
| Electric pedal | Included |
| Manual change | Included |
| Dimensions L x W x H(mm) | 685x500x1400 |
| Weight without oil | 420 KGS |
Package details: Gross weight: 450KGS Volume: 92cm x 81cm x 93cm
Standard Dies
| Φ | 13 | 16 | 19 | 22 | 26 | 30 | 34 | 39 | 45 | 51 | 54 | 63 | 67 |
| mm | 55 | 55 | 55 | 55 | 55 | 75 | 75 | 75 | 90 | 90 | 90 | 100 | 100 |
| Φ | 74 | 78 | 84 | 92 | 100 | 108 | 116 |
| mm | 110 | 110 | 110 | 110 | 110 | 110 | 110 |
A transition die
