Hose Crimping Machine 1.1/4''
Item
Description
YHHC-20D

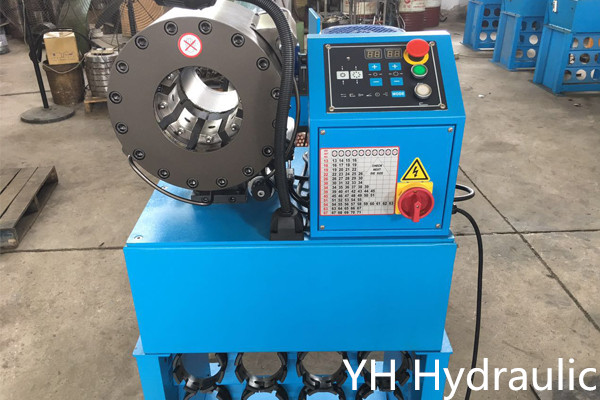

YHHC-20D is a hose crimping machine 1.1/4’’. It can crimp the four wire hoses from 3/16’’ to 1.1/4’’. YHHC-20D is equipped with 10 sets of dies, one die self, one quick change tool and one computer controlled system. Compared with the previous type YHHC-20B, it is a updated type to ensure a better crimping function. YH Hydraulic offers an after-sales service by emails, calls or messages.
From the following, it shows the technical data of YHHC-20D.
| Technical Data | YHHC-20D |
| Max hose size | 1.1/4’’ 4S |
| Swaging range(mm) | Φ6-87 |
| Main die shoe length(mm) | 85 |
| Standard voltage | 380V/50HZ |
| Motor power | 3kw |
| Optional voltage and motor | 220V/2.2KW |
| Pump(L/min) | 15L |
| Number of swagings/hour | 1000 |
| Noise level(dB) | 70 |
| Max opening(mm) | Φ+34mm |
| Crimping force(kN) | 4600 |
| Electic limit switch | Included |
| Electronic control | Included |
| Electric pedal | Included |
| Manual change | Included |
| Dimensions L x W x H(mm) | 685x530x1250 |
| Weight without oil | 280 KGS |
Package details: Gross weight: 320KGS Volume: 92cm x 81cm x 93cm
Standard Dies
| Φ | 10 | 13 | 16 | 19 | 22 | 26 | 30 | 34 | 39 | 45 | 51 |
| mm | 55 | 55 | 55 | 55 | 55 | 55 | 75 | 75 | 75 | 90 | 90 |
