Hose Crimping Machine 2’’
Item
Description
YHHC-32D

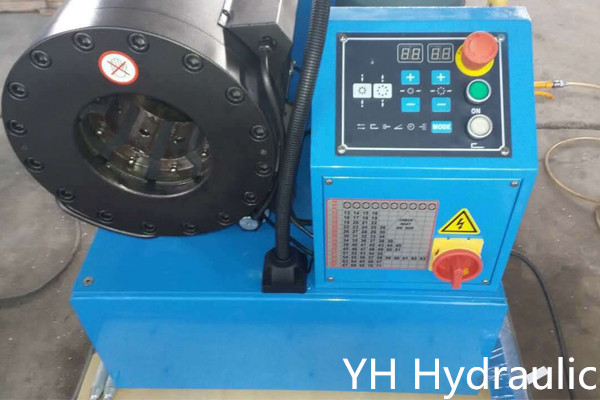

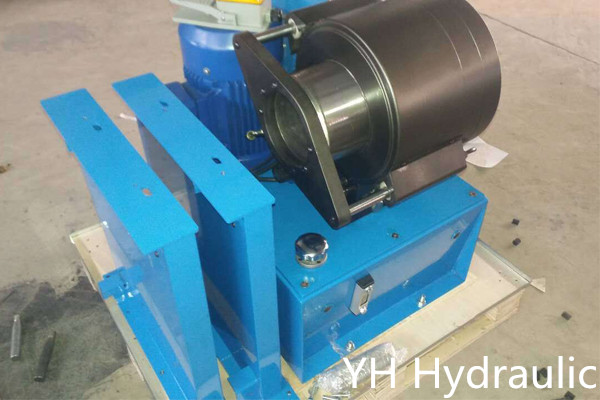

YHHC-32D is a hose crimping machine 2’’. It can crimp the six wire hoses from 3/16’’ to 2’’. YHHC-32D is equipped with 13 sets of dies, one die self, one quick change tool and one computer controlled system. It can make the crimping work much easier and more efficient. YH Hydraulic is also offering the crimping machine up to 1.1/4’’, 3’’, 4’’, 6'', 8'',16'' etc. Please feel free to contact us for any machine you need.
From the following, it shows the technical data of YHHC-32D.
| Technical Data | YHHC-32D |
| Max hose size | 2’’ 6S |
| Swaging range(mm) | Φ6-87 |
| Main die shoe length(mm) | 85 |
| Standard voltage | 380V/50HZ |
| Motor power | 4kw |
| Optional voltage and motor | 220V/2.2KW |
| Pump(L/min) | 19L |
| Number of swagings/hour | 1000 |
| Noise level(dB) | 70 |
| Max opening(mm) | Φ+34mm |
| Crimping force(kN) | 5260 |
| Electic limit switch | Included |
| Electronic control | Included |
| Electric pedal | Included |
| Manual change | Included |
| Dimensions L x W x H(mm) | 650x500x1300 |
| Weight without oil | 350 KGS |

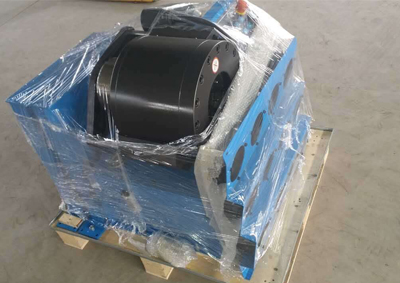

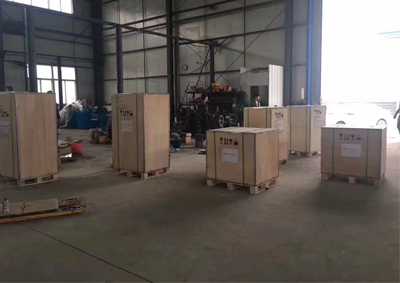

Package details: Gross weight: 370KGS Volume: 92cm x 81cm x 93cm
Standard Dies
| Φ | 13 | 16 | 19 | 22 | 26 | 30 | 34 | 39 | 45 | 51 | 54 | 63 | 67 |
| mm | 55 | 55 | 55 | 55 | 55 | 75 | 75 | 75 | 90 | 90 | 90 | 100 | 100 |
Other Dies
| Φ | 10 | 74 | 78 |
| mm | 55 | 110 | 110 |

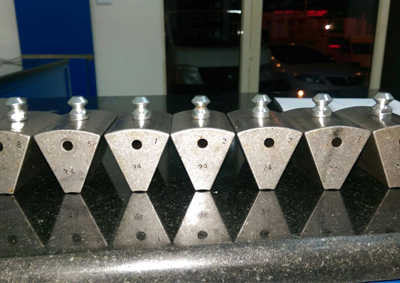

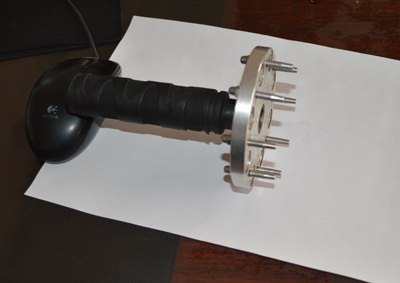

Dies and the quick change tool

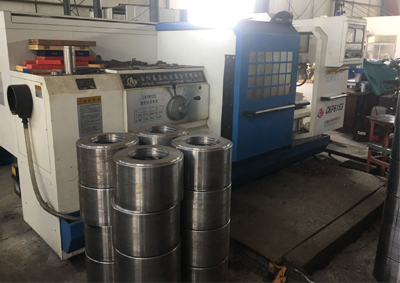

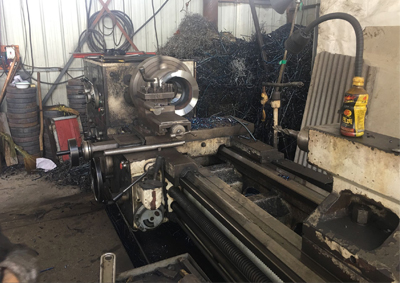

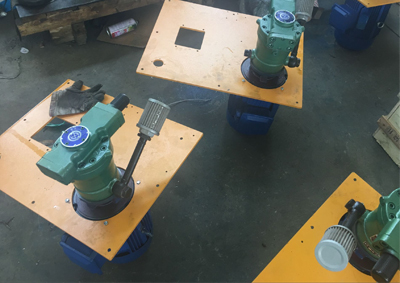

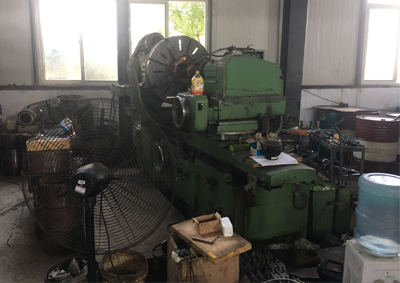

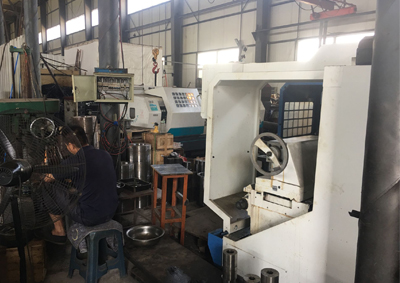

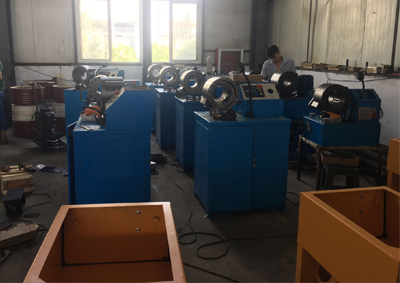

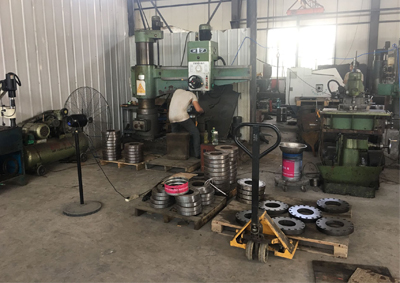

Production of crimping machines
