Ferrule crimping machine
Item
Description
YHHC-N20

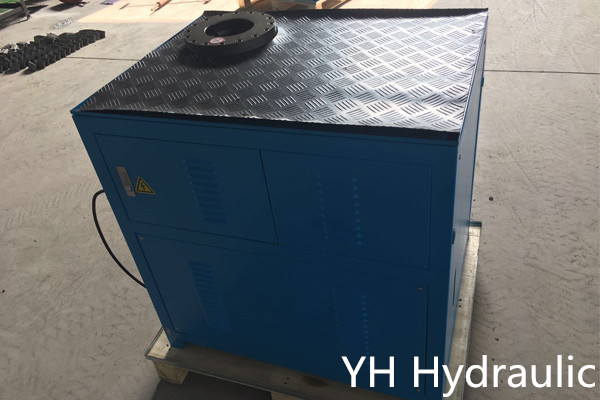

Ferrule crimping machine YHHC-N20 is a ferrule crimping machine to make one piece fittings. It is more powerful than YHHC-N10. It can also press nut to make female fittings like JIC femal, BSP female, etc.
Ferrule crimping machine YHHC-N20 is a ferrule crimping machine to make one piece fittings. It is more powerful than YHHC-N10. It can also press nut to make female fittings like JIC femal, BSP female, etc. Ferrule crimping machine YHHC-N20 is equipped with 13 sets of dies up to 2’’. It has a computer controlled system. All the details are showed below.
| Technical Data | YHHC-N20 |
| Swaging force(KN) | 2290 |
| Scope of work | Φ6-76 |
| Standard voltage | 380V/50HZ |
| Die opening | Φ+30mm |
| Optional voltage and power | 220V/2.2KW |

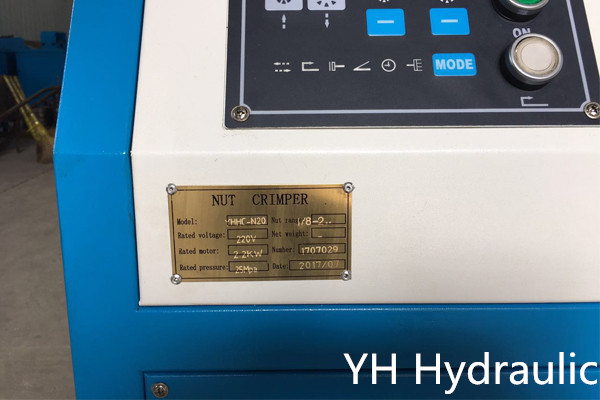

| Electronic control | Included |
| Electric pedal | Included |
| Special dies | Optional |
| Dimensions L x W x H(mm) | 850x710x830 |
| Weight without oil | 260 KGS |
Package details: Gross weight: 275KGS Volume: 90cm x 80cm x 100cm

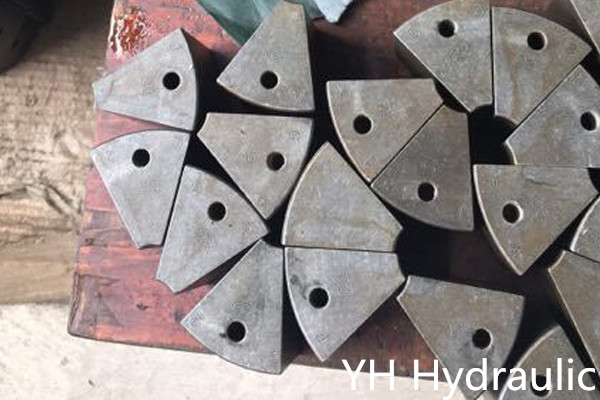

Standard Dies:
| Φ | 12 | 14 | 16 | 19 | 22 | 26 | 30 | 34 | 39 | 45 | 52 | 57 | 66 |
| mm | 3 | 3 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
