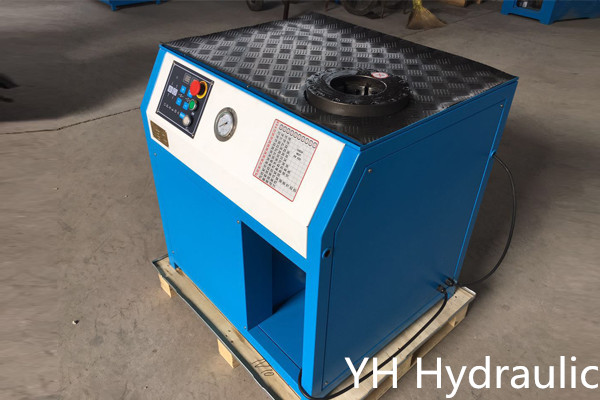

Nut crimping machine 2’’
Item
Description
YHHC-N10
YHHC-N10 is a nut crimping machine which can crimp nut with fittings up to 2’’. It includes 13 sets of standard dies. We keep a enough stock for quick shipment which voltage is 220V or 380V. For any special demand, pls feel free to contact us.
Nut crimping machine 2’’ YHHC-N10 can crimp nut with fittings up to 2’’. This machine provide instant, precise and constant performance when Crimping nut-, and ferrule- operations are performed quickly, accurately, and consistently. It includes 13 sets of standard dies. We keep a enough stock for quick shipment which voltage is 220V or 380V. For any special demand, pls feel free to contact us.
| Technical Data | YHHC-N10 |
| Swaging force(KN) | 1560 |
| Scope of work | Φ6-76 |
| Standard voltage | 380V/50HZ |
| Die opening | Φ+30mm |
| Optional voltage and power | 220V/2.2KW |

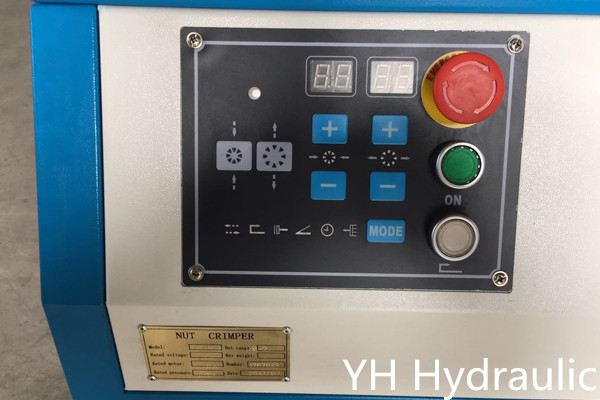

| Electronic control | Included |
| Electric pedal | Included |
| Special dies | Optional |
| Dimensions L x W x H(mm) | 850x710x830 |
| Weight without oil | 260 KGS |
Package details: Gross weight: 275KGS Volume: 90cm x 80cm x 100cm

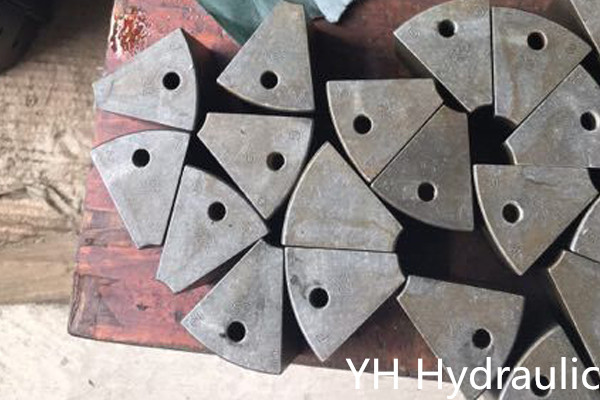

Standard dies
| Φ | 12 | 14 | 16 | 19 | 22 | 26 | 30 | 34 | 39 | 45 | 52 | 57 | 66 |
| mm | 3 | 3 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
