Interlock Hose Ferrule
Item
Description
00621
Interlock hose ferrule 00621 is used for R13 strengthen hoses as well as R15 hoses. 00621 ferrule can be used under very high pressure. YH Hydraulic ferrules are widely applicated in different hydraulic connections. Specially, the ferrules are used for high pressure. YH Hydraulic offers standarded sizes for all ferrules and fittings. And it can offer OEM services with samples or drawings presented.
INTERLOCK FERRULE FOR R13 STRENGTHEN HOSE

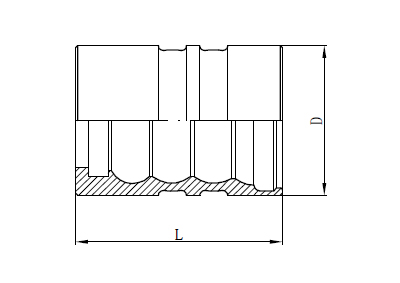

| 代号 | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||
| PART NO. | 公称内径 DN | 标号 DASH | D | L |
| 00621-08 | 12 | 8 | 33 | 46 |
| 00621-12 | 20 | 12 | 40 | 55 |
| 00621-16 | 25 | 16 | 49 | 64 |
| 00621-20 | 32 | 20 | 61 | 70 |
| 00621-24 | 40 | 24 | 70 | 82.5 |
| 00621-32 | 50 | 32 | 85 | 83.2 |
