Ferrule 1SN & 2SN
Item
Description
03310

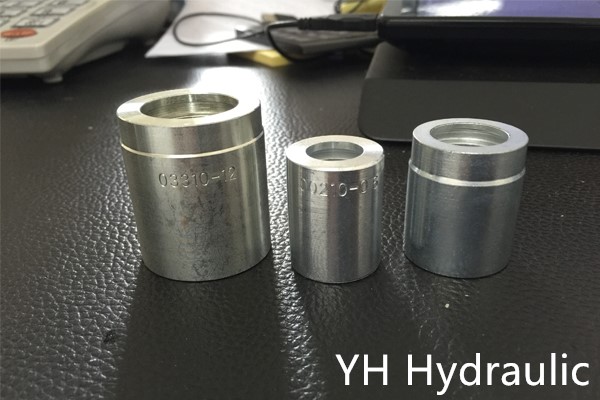

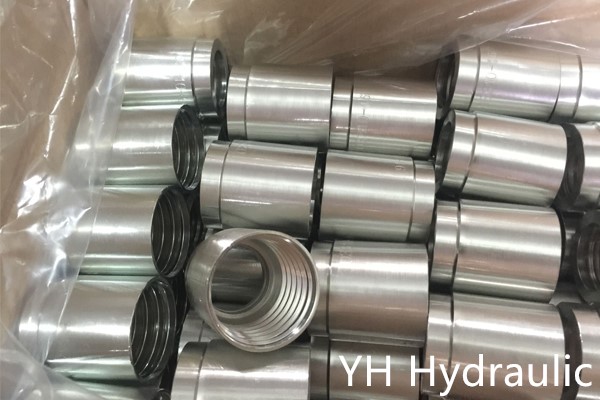

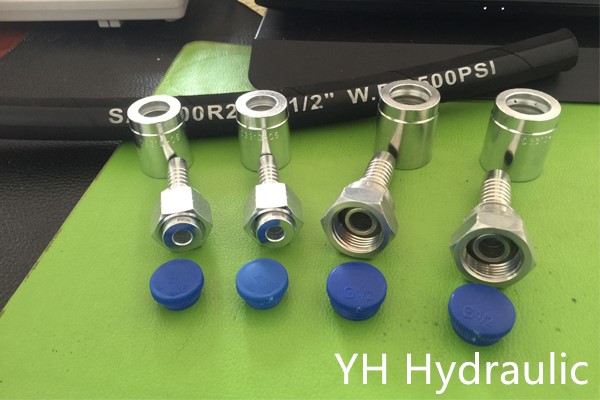

Ferrule 1SN & 2SN 03310 is used for one wire hose as well as two wire hose. The costing is higher than 00110 ferrules or 00210 ferrule. It has different inner shape and it is much easlier when assembling the hoses. For the exporting products, YH Hydraulic has a strict way to keep the goods from being rusted. YH Hydraulic offer white zinc plating, yellow zinc plating and Cr3 plating.
FERRULE FOR SAE 100R1AT/R2AT

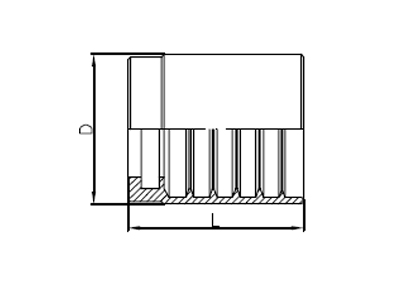

| 代号 | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||
| PART NO. | 公称内径 DN | 标 号 DASH | D | L |
| 03310-03 | 5 | 3 | 19 | 24 |
| 03310-04 | 6 | 4 | 23 | 30.2 |
| 03310-05 | 8 | 5 | 24 | 31.3 |
| 03310-06 | 10 | 6 | 26 | 32 |
| 03310-08 | 12 | 8 | 29 | 34 |
| 03310-10 | 16 | 10 | 33 | 37.5 |
| 03310-12 | 20 | 12 | 37 | 43 |
| 03310-16 | 25 | 16 | 46 | 51 |
| 03310-20 | 32 | 20 | 59 | 57 |
| 03310-24 | 40 | 24 | 67 | 60 |
| 03310-32 | 50 | 32 | 80 | 75 |
