Sleeve For 2SN
Item
Description
00210,00200

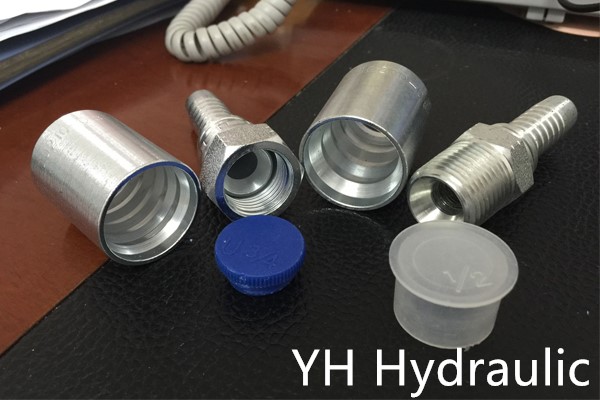

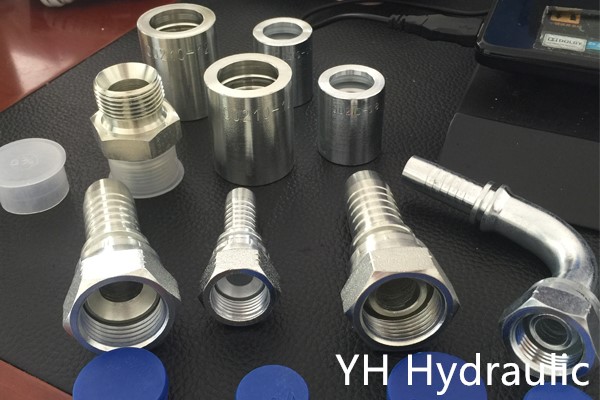

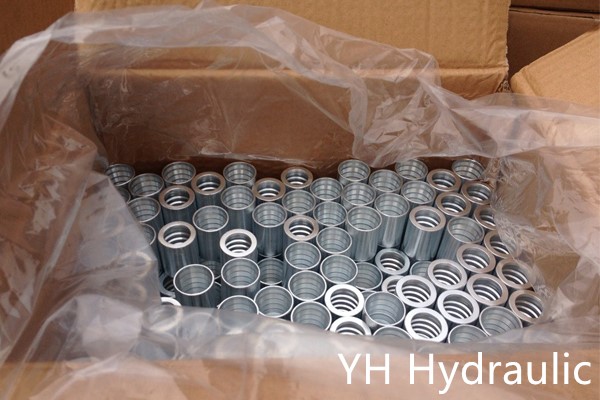

Sleeve for 2SN hydraulic hoses and R2AT hydraulic hoses is widely used from 1/4’’ until 2’’. YH Hydraulic use good carbon steel material for 00210 ferrule. The material is treated with heat to keep a good extension and toughness. Compared with 00210 ferrule, 00200 ferrule is used for two wire hoses which need to skive the rubber before the assembling. 00200 ferrule is thicker than than 00210 ferrule. YH Hydraulic ferrules are widely welcomed with customers oversea and from China. And the quality works without a problem. If you need another material or other sizes, pls feel free to contact the sales department.

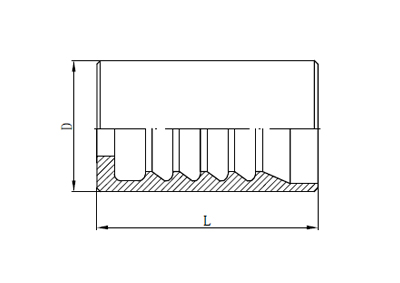

FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE
| 代号 | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||
| PART NO. | 公称内径 DN | 标 号 DASH | D | L |
| 00210-04 | 6 | 4 | 20.5 | 30 |
| 00210-05 | 8 | 5 | 22 | 32.4 |
| 00210-06 | 10 | 6 | 25 | 32 |
| 00210-08 | 12 | 8 | 28.6 | 35 |
| 00210-10 | 16 | 10 | 32 | 38 |
| 00210-12 | 20 | 12 | 36 | 44.2 |
| 00210-16 | 25 | 16 | 45 | 52 |
| 00210-20 | 32 | 20 | 56 | 57 |
| 00210-24 | 40 | 24 | 62.5 | 60.5 |
| 00210-32 | 50 | 32 | 75 | 75 |

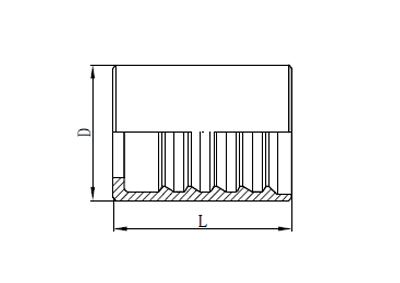

SKIVE FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE
| 代号 | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||
| PART NO. | 公称内径 DN | 标 号 DASH | D | L |
| 00200-02 | 4 | 2 | 20.6 | 27 |
| 00200-04 | 6 | 4 | 21 | 30.2 |
| 00200-05 | 8 | 5 | 24 | 32 |
| 00200-06 | 10 | 6 | 24.5 | 32 |
| 00200-08 | 12 | 8 | 30 | 34 |
| 00200-10 | 16 | 10 | 33.4 | 39.2 |
| 00200-12 | 20 | 12 | 38 | 43.4 |
| 00200-16 | 25 | 16 | 46 | 50 |
| 00200-20 | 32 | 20 | 56 | 57 |
| 00200-24 | 40 | 24 | 62 | 60 |
| 00200-32 | 50 | 32 | 75 | 75 |
