Ferrule For R1AT
Item
Description
00100,00110
Ferrule for R1AT 00110 is used for EN 853 1SN hose as well . 00110 ferrule is connected with one wire hose to make hose assembly. Hydraulic hose ferrule 00110 is produced from 1/4’’ to 2’’. The material is mild carbon steel. Compared with 00110 ferrule, 00100 ferrule is called skive ferrule which means before assembling the hose, need to skive the hose rubber firstly. YH Hydraulic keep a wide stock for 00110 ferrules.

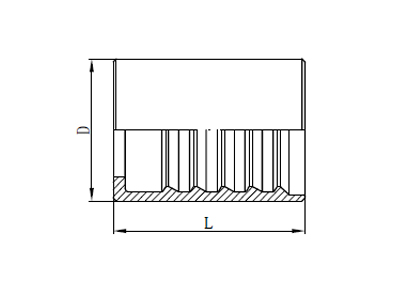

FERRULE FOR SAE 100R1AT/EN 853 1SN HOSE
| 代号 | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||
| PART NO. | 公称内径 DN | 标 号 DASH | D | L |
| 00110-04 | 6 | 4 | 19 | 30 |
| 00110-05 | 8 | 5 | 20.5 | 32 |
| 00110-06 | 10 | 6 | 23.2 | 32 |
| 00110-08 | 12 | 8 | 27 | 35.3 |
| 00110-10 | 16 | 10 | 30.5 | 38 |
| 00110-12 | 20 | 12 | 34 | 44.2 |
| 00110-14 | 22 | 14 | 37 | 45 |
| 00110-16 | 25 | 16 | 42.6 | 52 |
| 00110-20 | 32 | 20 | 50.8 | 57 |
| 00110-24 | 40 | 24 | 58 | 60 |
| 00110-32 | 50 | 32 | 72 | 75 |

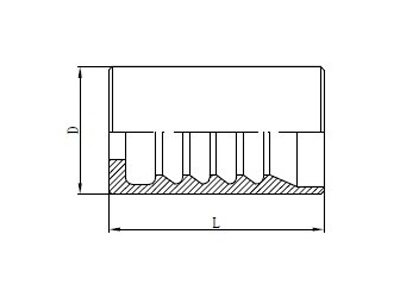

SKIVE FERRULE FOR SAE100R1AT/EN853 1SN HOSE
| 代号 | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||
| PART NO. | 公称内径 DN | 标 号 DASH | D | L |
| 00100-02 | 4 | 2 | 17 | 26 |
| 00100-04 | 6 | 4 | 19 | 30 |
| 00100-05 | 8 | 5 | 21 | 32.2 |
| 00100-06 | 10 | 6 | 23 | 32 |
| 00100-08 | 12 | 8 | 28 | 34 |
| 00100-10 | 16 | 10 | 31 | 39 |
| 00100-12 | 20 | 12 | 36 | 43.5 |
| 00100-16 | 25 | 16 | 43 | 50 |
| 00100-20 | 32 | 20 | 51 | 57 |
| 00100-24 | 40 | 24 | 57 | 60.3 |
| 00100-32 | 50 | 32 | 70 | 75 |
