SAE Male Hose Fittings
Item
Description
16011,16012

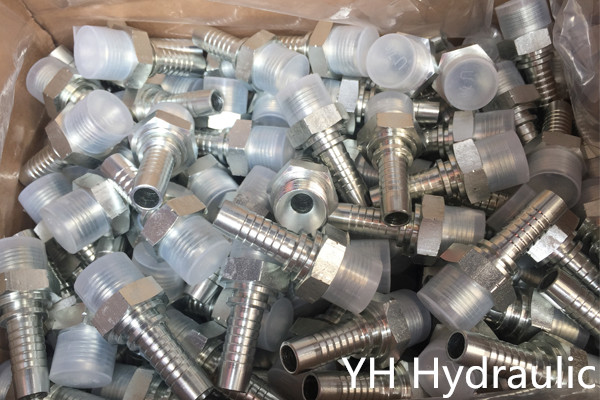

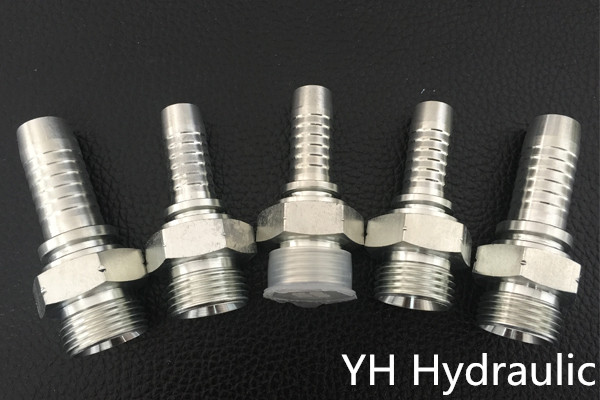

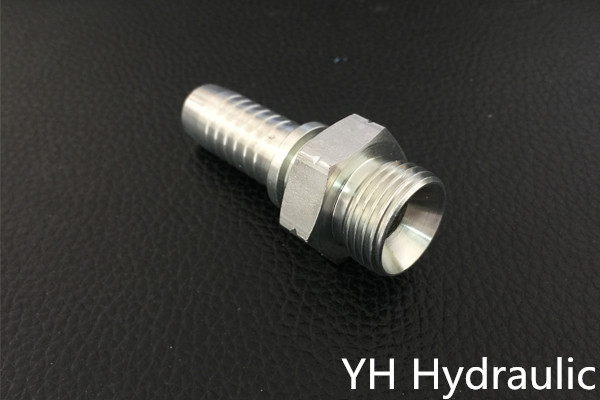

SAE male hose fittings 16011 is a thread type called SAE male with o-ring. It is an American thread type as well. YH Hydraulic can offer a complete size range for this type. But this is not a popular thread type, we need good quantity for the production. The pictures showed are real fittings for SAE male hose fittings 16011. For any requirement, pls feel free to advise us.

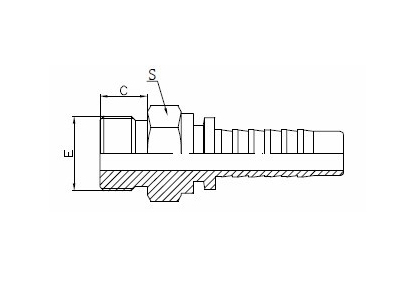

SAE MALE WITH O-RING
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S |
| 16011-04-04 | 7/16"X20 | 6 | 4 | 10 | 14 |
| 16011-05-04 | 1/2"X20 | 6 | 4 | 10 | 17 |
| 16011-06-05 | 9/16"X18 | 8 | 5 | 12 | 17 |
| 16011-06-06 | 9/16"X18 | 10 | 6 | 12 | 17 |
| 16011-08-06 | 3/4"X16 | 10 | 6 | 12 | 22 |
| 16011-08-08 | 3/4"X16 | 12 | 8 | 12 | 22 |
| 16011-10-08 | 7/8"X14 | 12 | 8 | 13.5 | 27 |
| 16011-10-10 | 7/8"X14 | 16 | 10 | 13.5 | 27 |
| 16011-12-10 | 1.1/16"X12 | 16 | 10 | 16 | 32 |
| 16011-12-12 | 1.1/16"X12 | 20 | 12 | 16 | 32 |
| 16011-16-16 | 1.5/16"X12 | 25 | 16 | 17 | 41 |
| 16011-20-20 | 1.5/8"X12 | 32 | 20 | 18 | 50 |
| 16011-24-24 | 1.7/8"X12 | 40 | 24 | 18.5 | 55 |
| 16011-32-32 | 2.1/2"X12 | 50 | 32 | 22 | 70 |

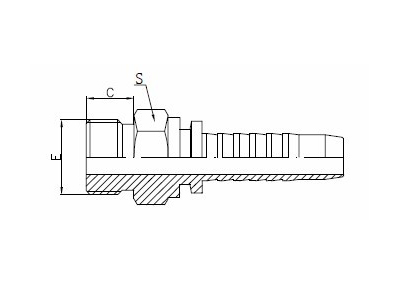

SAE MALE WITH O-RING FOR SPIRAL HOSE
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S |
| 16012-08-08 | 3/4"X16 | 12 | 8 | 12 | 22 |
| 16012-10-08 | 7/8"X14 | 12 | 8 | 13.5 | 27 |
| 16012-10-10 | 7/8"X14 | 16 | 10 | 13.5 | 27 |
| 16012-12-10 | 1.1/16"X12 | 16 | 10 | 16 | 32 |
| 16012-12-12 | 1.1/16"X12 | 20 | 12 | 16 | 32 |
| 16012-16-16 | 1.5/16"X12 | 25 | 16 | 17 | 41 |
| 16012-20-20 | 1.5/8"X12 | 32 | 20 | 18 | 50 |
| 16012-24-24 | 1.7/8"X12 | 40 | 24 | 18.5 | 55 |
| 16012-32-32 | 2.1/2"X12 | 50 | 32 | 22 | 70 |
