NPT Hose Fittings
Item
Description
15611,15612,15613

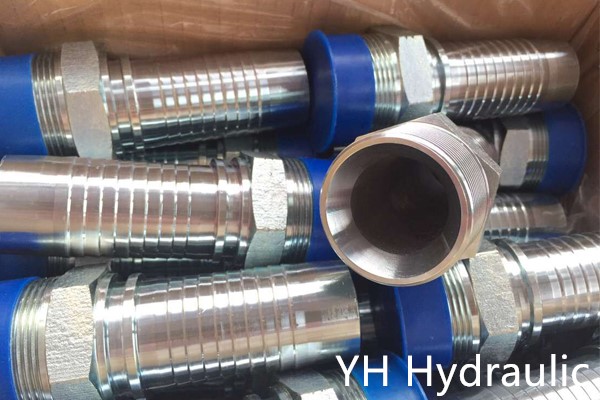

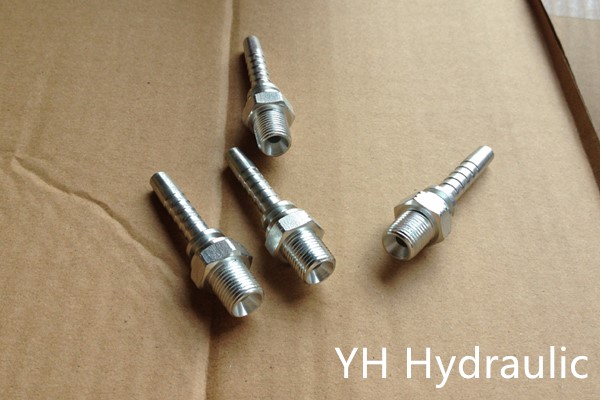

NPT hose fittings 15611 is NPT male thread, the most popular type of seal for pressure calibration systems all over the world. YH Hydraulic offers many thread types such as BSP, JIC, ORFS, metric, JIS, flange 3000PSI, 6000PSI, 9000PSI, etc. The common sizes are from 1/4’’ up to 2’’. And also YH Hydraulic is producing mixed sizes for each thread type. We have the standard sizes for NPT hose fittings and the sizes are welcomed among lots of markets. But if customers need a special size, pls feel free to talk to our sales department.

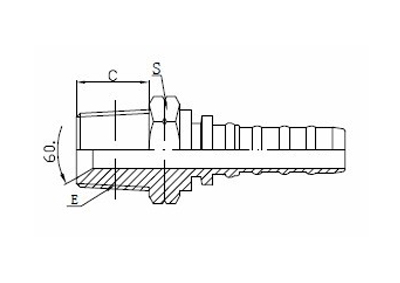

NPT MALE
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S |
| 15611-04-04 | Z1/4"X18 | 6 | 4 | 14 | 17 |
| 15611-06-06 | Z3/8"X18 | 10 | 6 | 14 | 19 |
| 15611-08-08 | Z1/2"X14 | 12 | 8 | 19 | 22 |
| 15611-12-10 | Z3/4"X14 | 16 | 10 | 19.5 | 30 |
| 15611-12-12 | Z3/4"X14 | 20 | 12 | 19.5 | 30 |
| 15611-16-16 | Z1"X11.5 | 25 | 16 | 24 | 36 |
| 15611-20-20 | Z1¼"X11.5 | 32 | 20 | 25 | 46 |
| 15611-24-24 | Z1½"X11.5 | 40 | 24 | 25 | 50 |
| 15611-32-32 | Z2"X11.5 | 50 | 32 | 28 | 65 |

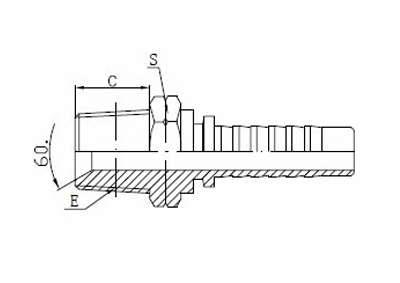

NPT MALE FOR SPIRAL HOSE
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S |
| 15612-08-08 | Z1/2"X14 | 12 | 8 | 19 | 22 |
| 15612-12-10 | Z3/4"X14 | 16 | 10 | 19.5 | 30 |
| 15612-12-12 | Z3/4"X14 | 20 | 12 | 19.5 | 30 |
| 15612-16-16 | Z1"X11.5 | 25 | 16 | 24 | 36 |
| 15612-20-20 | Z1¼"X11.5 | 32 | 20 | 25 | 46 |
| 15612-24-24 | Z1½"X11.5 | 40 | 24 | 25 | 50 |
| 15612-32-32 | Z2"X11.5 | 50 | 32 | 28 | 65 |

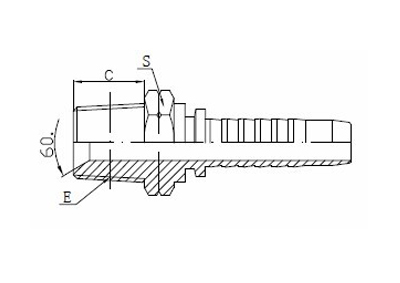

NPT MALE INTERLOCK
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S |
| 15613-08-08 | Z1/2"X14 | 12 | 8 | 19 | 22 |
| 15613-12-10 | Z3/4"X14 | 16 | 10 | 19.5 | 30 |
| 15613-12-12 | Z3/4"X14 | 20 | 12 | 19.5 | 30 |
| 15613-16-16 | Z1"X11.5 | 25 | 16 | 24 | 36 |
| 15613-20-20 | Z1¼"X11.5 | 32 | 20 | 25 | 46 |
| 15613-24-24 | Z1½"X11.5 | 40 | 24 | 25 | 50 |
| 15613-32-32 | Z2"X11.5 | 50 | 32 | 28 | 65 |
