BSP Banjo Fittings
Item
Description
72011,70011

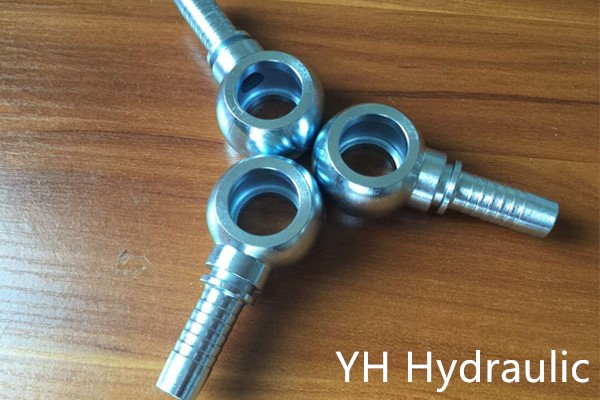

BSP banjo fittings 72011 are made from carbon steel with zinc plated before shipment. Banjo fittings produced in YH Hydraulic have two thread types which are bsp and metric. The detail information are showed below sheets. YH Hydraulic keeps a good stock for all sizes of bsp banjo fittings and metric banjo fittings. Welcome to contact us for any of requirements.
BSP BANJO

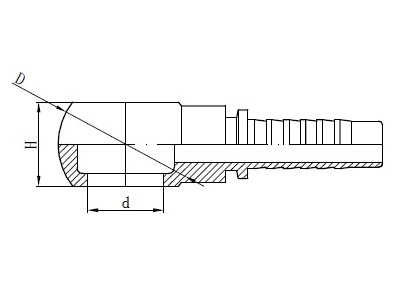

| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | d | D | H |
| 72011-04-04 | G1/4" | 6 | 4 | 13.3 | 24 | 15 |
| 72011-04-05 | G1/4" | 8 | 5 | 13.3 | 24 | 15 |
| 72011-06-05 | G3/8" | 10 | 6 | 16.7 | 29 | 20 |
| 72011-06-06 | G3/8" | 10 | 6 | 16.7 | 29 | 19 |
| 72011-08-06 | G1/2" | 12 | 8 | 21 | 38 | 25 |
| 72011-08-08 | G1/2" | 12 | 8 | 21 | 38 | 25 |
| 72011-10-10 | G5/8" | 16 | 10 | 23 | 40 | 27 |
| 72011-12-12 | G3/4" | 20 | 12 | 26.5 | 46 | 31 |
| 72011-16-16 | G1" | 25 | 16 | 33.3 | 60 | 42 |
METRIC BANJO DIN7622
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | d | D | H |
| 70011-08-04 | M8X1 | 6 | 4 | 8 | 20 | 13 |
| 70011-10-04 | M10X1 | 6 | 4 | 10 | 22 | 13 |
| 70011-12-04 | M12X1.5 | 6 | 4 | 12 | 20 | 12 |
| 70011-12-05 | M12X1.5 | 8 | 5 | 12 | 20 | 12 |
| 70011-14-04 | M14X1.5 | 6 | 4 | 14 | 24 | 14 |
| 70011-14-05 | M14X1.5 | 8 | 5 | 14 | 24 | 14 |
| 70011-14-06 | M14X1.5 | 10 | 6 | 14 | 24 | 14 |
| 70011-14-08 | M14X1.5 | 12 | 8 | 14 | 24 | 14 |
| 70011-16-06 | M16X1.5 | 10 | 6 | 16 | 28 | 16 |
| 70011-16-08 | M16X1.5 | 12 | 8 | 16 | 28 | 16 |
| 70011-18-06 | M18X1.5 | 10 | 6 | 18 | 32 | 20 |
| 70011-18-08 | M18X1.5 | 12 | 8 | 18 | 32 | 20 |
| 70011-18-10 | M18X1.5 | 16 | 10 | 18 | 32 | 20 |
| 70011-20-08 | M20X1.5 | 12 | 8 | 20 | 36 | 22 |
| 70011-20-10 | M20X1.5 | 16 | 10 | 20 | 36 | 22 |
| 70011-22-08 | M22X1.5 | 12 | 8 | 22 | 38 | 25 |
| 70011-22-10 | M22X1.5 | 16 | 10 | 22 | 38 | 25 |
| 70011-22-12 | M22X1.5 | 22 | 12 | 22 | 38 | 25 |
| 70011-26-12 | M26X1.5 | 22 | 12 | 26 | 46 | 30 |
| 70011-27-12 | M27X1.5 | 22 | 12 | 27 | 52 | 36 |
| 70011-30-12 | M30X1.5 | 22 | 12 | 30 | 54 | 36 |
| 70011-30-16 | M30X1.5 | 25 | 16 | 30 | 54 | 36 |
| 70011-33-16 | M33X1.5 | 25 | 16 | 33 | 60 | 36 |
