Double Connector Hose Fitting
Item
Description
90011,90012

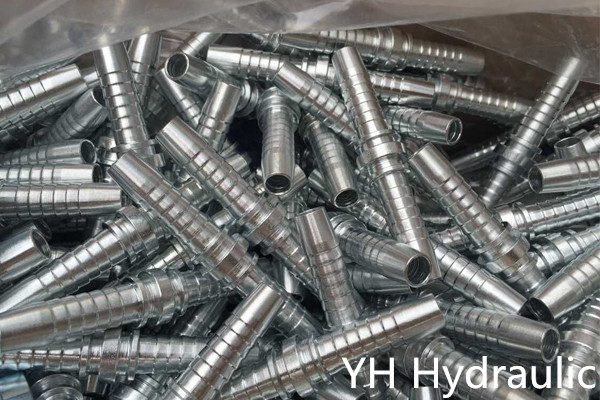

Double connector hose fitting 90011 is used for connecting two pieces of hoses to save the hose material. 90011 double connectors are used for one wire hose and two wire hose. 90012 double connectors are used for four wire hose as well as one and two wire hose. 90011 is a type of double connector but we can make it as single which are regually required from the market like Sri Lanka. 90011 fittings like common fittings are made from carbon steel which is galvanized by white zinc, yellow zinc or Cr3

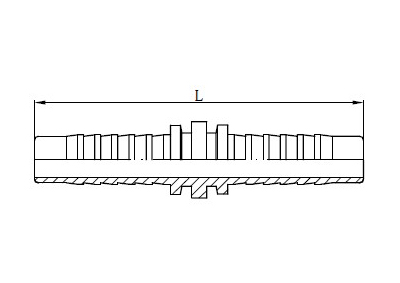

DOUBLE CONNECTOR
| 代号 | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |
| PART NO. | 公称内径DN | 标 号 DASH | L |
| 90011-04-04 | 6 | 4 | 74 |
| 90011-05-05 | 8 | 5 | 78 |
| 90011-06-06 | 10 | 6 | 78 |
| 90011-08-08 | 12 | 8 | 86 |
| 90011-10-10 | 16 | 10 | 90 |
| 90011-12-12 | 20 | 12 | 99 |
| 90011-16-16 | 25 | 16 | 121 |
| 90011-20-20 | 32 | 20 | 129 |
| 90011-24-24 | 40 | 24 | 135 |
| 90011-32-32 | 50 | 32 | 165 |

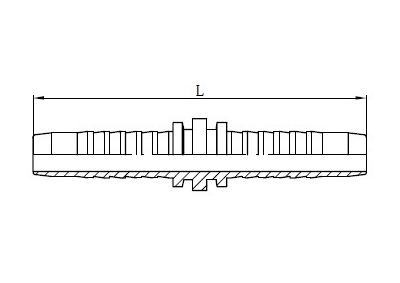

DOUBLE CONNECTOR FOR SPIRAL HOSE
| 代号 | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |
| PART NO. | 公称内径DN | 标 号 DASH | L |
| 90012-08-08 | 12 | 8 | 94 |
| 90012-10-10 | 16 | 10 | 96 |
| 90012-12-12 | 20 | 12 | 113 |
| 90012-16-16 | 25 | 16 | 135 |
| 90012-20-20 | 32 | 20 | 157 |
| 90012-24-24 | 40 | 24 | 165 |
| 90012-32-32 | 50 | 32 | 175 |
