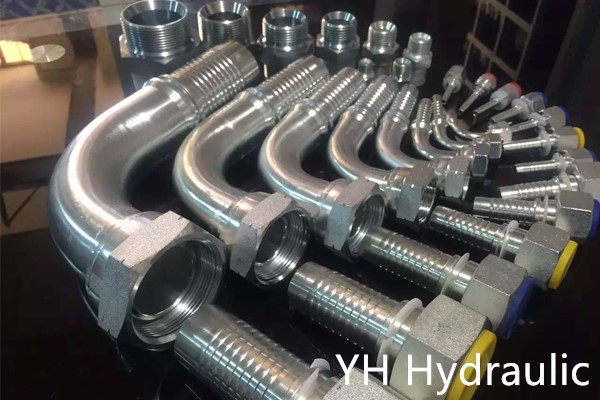

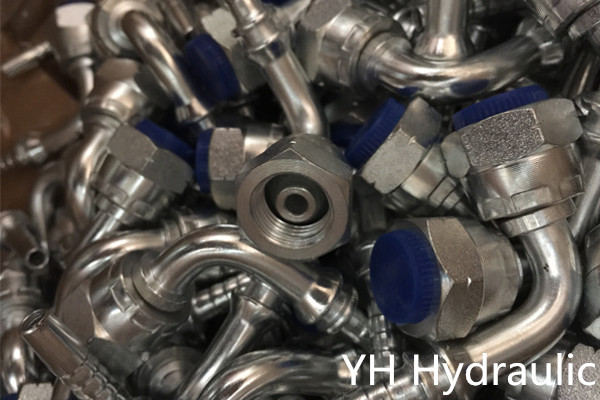

90° BSP Female Fittings
BSP elbowing fittings has two common types: 90°BSP Female Fittings and 45°BSP Female Fittings. According to the different tail shapes, it has three types which are one tail for R1AT hoses and R2AT hoses, one tail for 4SP hoses, 4SH hoses, R12 hoses, etc, the last tail for R13 hoses and R15 hoses. From the below technical sheets, we show all the details. YH Hydraulic is offering JIC fittings, BSP fittings, ORFS fittings, metric fittings, NPT fittings, as well as flange fittings. These types are regularly shipping items. Please feel free to contact us if you require any products or any question.

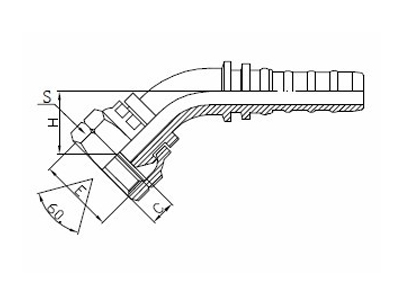

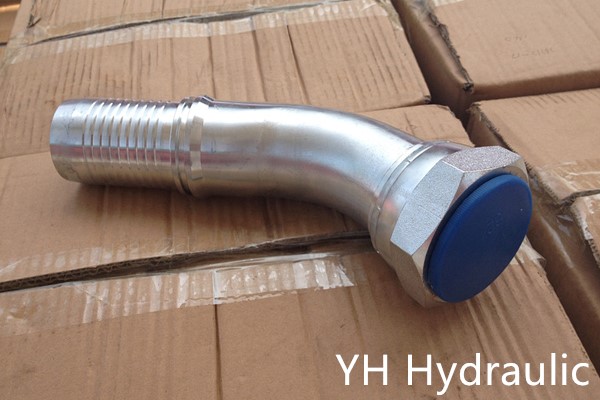

45°BSP FEMALE 60°CONE
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S | H |
| 22641-04-04 | G1/4"X19 | 6 | 4 | 5.5 | 19 | 20.2 |
| 22641-06-05 | G3/8"X19 | 8 | 5 | 6.5 | 22 | 22 |
| 22641-06-06 | G3/8"X19 | 10 | 6 | 6.5 | 22 | 22.6 |
| 22641-08-08 | G1/2"X14 | 12 | 8 | 8 | 27 | 26.1 |
| 22641-10-10 | G5/8"X14 | 16 | 10 | 10.5 | 30 | 27.8 |
| 22641-12-12 | G3/4"X14 | 20 | 12 | 11.5 | 32 | 31.8 |
| 22641-16-16 | G1"X11 | 25 | 16 | 11.5 | 41 | 34.2 |
| 22641-20-20 | G1.1/4"X11 | 32 | 20 | 12 | 50 | 40 |
| 22641-24-24 | G1.1/2"X11 | 40 | 24 | 13 | 55 | 44.8 |
| 22641-32-32 | G2"X11 | 50 | 32 | 16 | 70 | 52.7 |

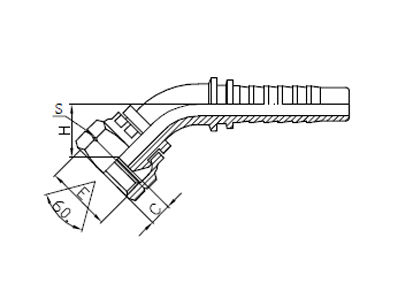

45°BSP FEMALE 60°CONE FOR SPIRAL HOSE
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S | H |
| 22642-08-08 | G1/2"X14 | 12 | 8 | 8 | 27 | 26.1 |
| 22642-10-10 | G5/8"X14 | 16 | 10 | 10.5 | 30 | 27.8 |
| 22642-12-12 | G3/4"X14 | 20 | 12 | 11.5 | 32 | 31 |
| 22642-16-16 | G1"X11 | 25 | 16 | 11.5 | 41 | 34 |
| 22642-20-20 | G1.1/4"X11 | 32 | 20 | 12 | 50 | 40 |
| 22642-24-24 | G1.1/2"X11 | 40 | 24 | 13 | 55 | 44.5 |
| 22642-32-32 | G2"X11 | 50 | 32 | 16 | 70 | 52.7 |

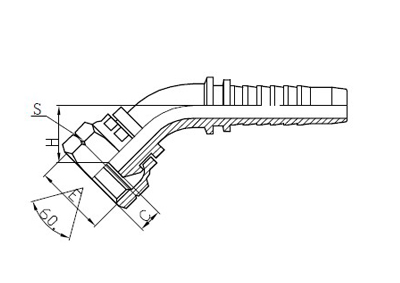

45°BSP FEMALE 60°CONE FOR INTERLOCK
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S | H |
| 22643-08-08 | G1/2"X14 | 12 | 8 | 8 | 27 | 26 |
| 22643-12-12 | G3/4"X14 | 20 | 12 | 11.5 | 32 | 31.8 |
| 22643-16-16 | G1"X11 | 25 | 16 | 11.5 | 41 | 34.2 |
| 22643-20-20 | G1¼"X11 | 32 | 20 | 12 | 50 | 38 |
| 22643-24-24 | G1½"X11 | 40 | 24 | 13 | 55 | 45.5 |
| 22643-32-32 | G2"X11 | 50 | 32 | 16 | 70 | 52.7 |

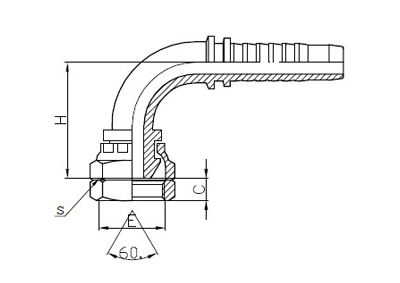

90°BSP FEMALE 60°CONE
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S | H |
| 22691-04-04 | G1/4"X19 | 6 | 4 | 5.5 | 19 | 36.5 |
| 22691-06-06 | G3/8"X19 | 10 | 6 | 6.5 | 22 | 43 |
| 22691-08-08 | G1/2"X14 | 12 | 8 | 8 | 27 | 51 |
| 22691-10-10 | G5/8"X14 | 16 | 10 | 10.5 | 30 | 56 |
| 22691-12-12 | G3/4"X14 | 20 | 12 | 11.5 | 32 | 66 |
| 22691-16-16 | G1"X11 | 25 | 16 | 11.5 | 41 | 73.8 |
| 22691-20-20 | G1.1/4"X11 | 32 | 20 | 12 | 50 | 87 |
| 22691-24-24 | G1.1/2"X11 | 40 | 24 | 13 | 55 | 102 |
| 22691-32-32 | G2"X11 | 50 | 32 | 16 | 70 | 125.3 |

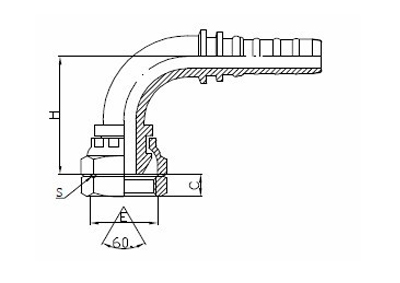

90°BSP FEMALE 60°CONE FOR SPIRAL HOSE
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S | H |
| 22692-08-08 | G1/2"X14 | 12 | 8 | 8 | 27 | 51 |
| 22692-10-10 | G5/8"X14 | 16 | 10 | 10.5 | 30 | 56.5 |
| 22692-12-12 | G3/4"X14 | 20 | 12 | 11.5 | 32 | 66.6 |
| 22692-16-16 | G1"X11 | 25 | 16 | 11.5 | 41 | 73.8 |
| 22692-20-20 | G1.1/4"X11 | 32 | 20 | 12 | 50 | 87 |
| 22692-24-24 | G1.1/2"X11 | 40 | 24 | 13 | 55 | 102.3 |
| 22692-32-32 | G2"X11 | 50 | 32 | 16 | 70 | 125.4 |

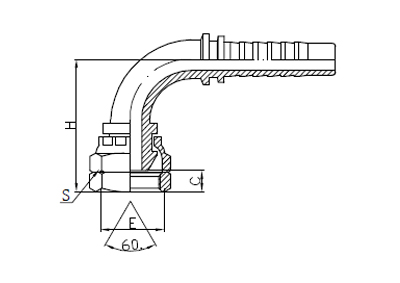

90°BSP FEMALE 60°CONE FOR INTERLOCK
| 代号 | 螺纹E THREAD E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | 公称内径DN | 标 号 DASH | C | S | H | |
| 22693-08-08 | G1/2"X14 | 12 | 8 | 8 | 27 | 51.2 |
| 22693-12-12 | G3/4"X14 | 20 | 12 | 11.5 | 32 | 66.5 |
| 22693-16-16 | G1"X11 | 25 | 16 | 11.5 | 41 | 73.8 |
| 22693-20-20 | G1¼"X11 | 32 | 20 | 12 | 50 | 87.5 |
| 22693-24-24 | G1½"X11 | 40 | 24 | 13 | 55 | 102 |
| 22693-32-32 | G2"X11 | 50 | 32 | 16 | 70 | 125.3 |
