9000PSI Flange Interlock Fittings
Item
Description
87912,87913

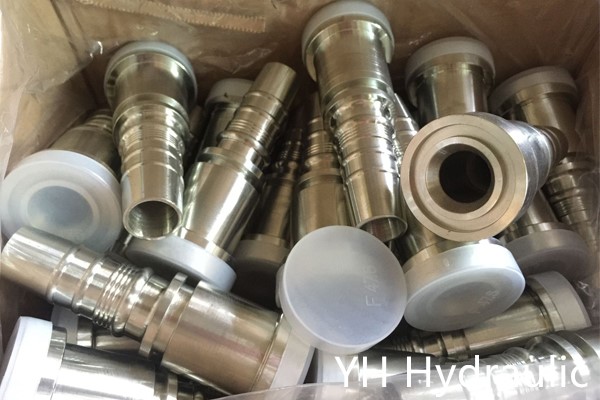

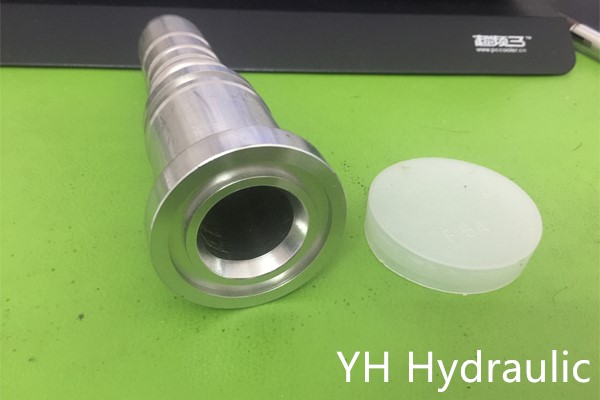

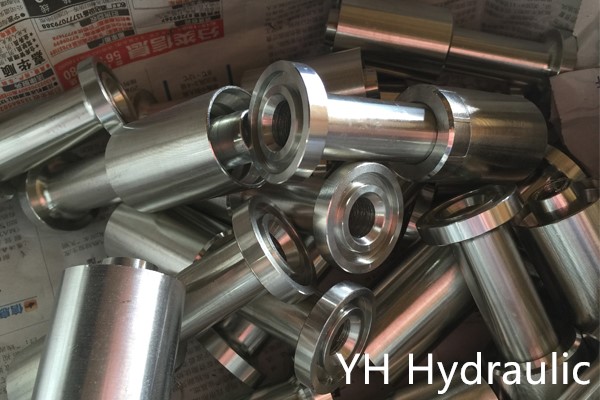

9000PSI Flange Interlock Fittings is well known as 63 flange fittings which is special for high pressure demands from hydraulic connection. This flange fittings are made from carbon steel commonly but if any requirement for the different raw materials we could supply. From the pictures showed, you might see that all surface are kept well. It is a common way we ship the products without the burr and the impurities. To ensure the same surfac reaching to customers’ side, we keep a stick packing way. Pls feel free to click the FAQ for a look.
The following data shows the detail sizes for this type.

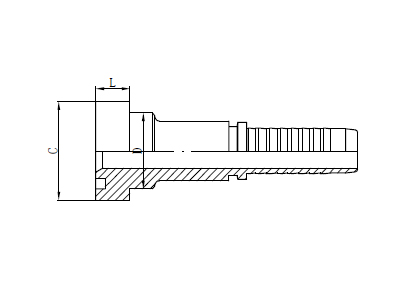

SAE FLANGE 9000PSI FOR SPIRAL HOSE
| 代号 | 法兰尺寸 | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | FLANGE SIZE | 公称内径DN | 标 号 DASH | C | D | L |
| 87912-08-08 | 1/2" | 12 | 8 | 31.8 | 23.9 | 14.3 |
| 87912-12-12 | 3/4" | 20 | 12 | 41.3 | 31.7 | 14.3 |
| 87912-16-16 | 1" | 25 | 16 | 47.6 | 38 | 14.3 |
| 87912-20-20 | 1.1/4" | 32 | 20 | 54 | 43.6 | 14.3 |
| 87912-24-24 | 1.1/2" | 40 | 24 | 63.5 | 50.8 | 14.3 |
| 87912-32-32 | 2" | 50 | 32 | 79.4 | 66.5 | 14.3 |

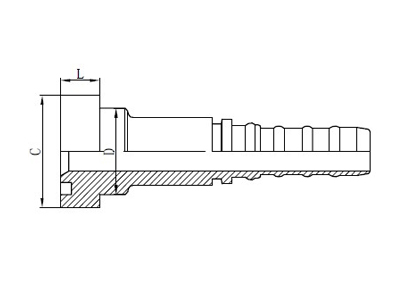

SAE FLANGE 9000PSI FOR INTERLOCK
| 代号 | 法兰尺寸 | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | FLANGE SIZE | 公称内径DN | 标 号 DASH | C | D | L |
| 87913-08-08 | 1/2" | 12 | 8 | 31.8 | 23.9 | 14.3 |
| 87913-12-12 | 3/4" | 20 | 12 | 41.3 | 31.7 | 14.3 |
| 87913-16-16 | 1" | 25 | 16 | 47.6 | 38 | 14.3 |
| 87913-20-20 | 1.1/4" | 32 | 20 | 54 | 43.6 | 14.3 |
| 87913-24-24 | 1.1/2" | 40 | 24 | 63.5 | 50.8 | 14.3 |
| 87913-32-32 | 2" | 50 | 32 | 79.4 | 66.5 | 14.3 |
