6000PSI Flange Fittings
Item
Description
87612,87613

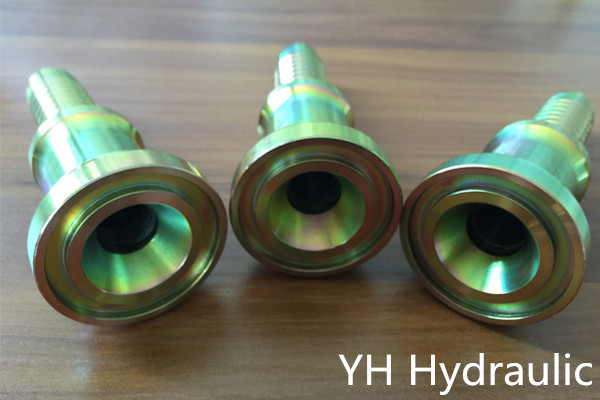

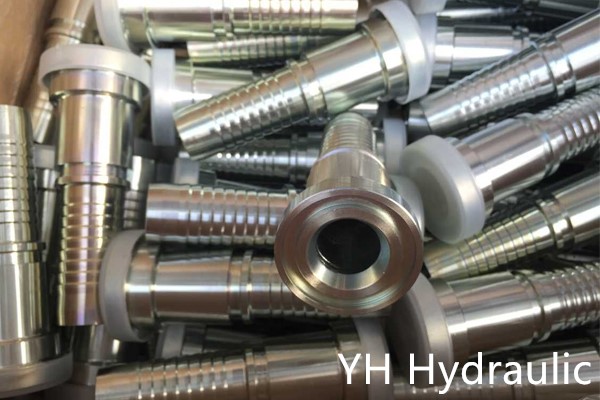

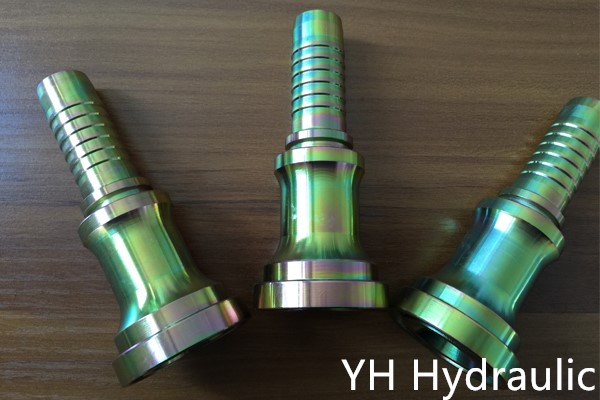

6000PSI Flange fittings is SAE flange 6000PSI for spiral hoses like 4SP, 4SH, R12 hoses etc. This straight fitting can be manufactured as interlock type. 6000PSI Flange fittings share the same size with 9000psi flange fittings on the flange size. The different size is the thickness of the flange which in the sheets mentioned “L”. 6000PSI flange fittings are used for the high demand of fluid connecion. It could flight the high pressure force. YH Hydraulic keeps a wide stock for flange fittings with good package.

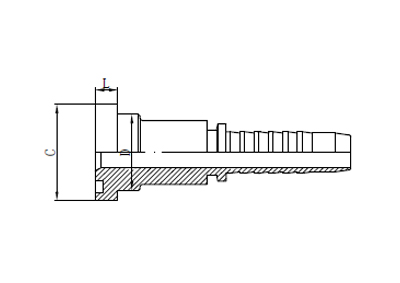

SAE FLANGE 6000PSI FOR SPIRAL HOSE
| 代号 | 法兰尺寸 | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | FLANGE SIZE | 公称内径DN | 标 号 DASH | C | D | L |
| 87612-08-08 | 1/2" | 12 | 8 | 31.8 | 23.9 | 7.9 |
| 87612-12-12 | 3/4" | 20 | 12 | 41.3 | 31.7 | 8.9 |
| 87612-16-16 | 1" | 25 | 16 | 47.6 | 38 | 9.6 |
| 87612-20-20 | 1.1/4" | 32 | 20 | 54 | 43.6 | 10.4 |
| 87612-24-24 | 1.1/2" | 40 | 24 | 63.5 | 50.8 | 12.7 |
| 87612-32-32 | 2" | 50 | 32 | 79.4 | 66.5 | 12.7 |

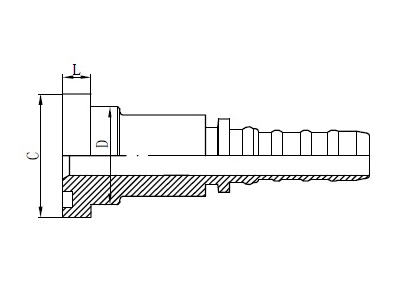

SAE FLANGE 6000PSI FOR INTERLOCK
| 代号 | 法兰尺寸 | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | FLANGE SIZE | 公称内径DN | 标 号 DASH | C | D | L |
| 87613-08-08 | 1/2" | 12 | 8 | 31.8 | 23.9 | 7.9 |
| 87613-12-12 | 3/4" | 20 | 12 | 41.3 | 31.7 | 8.9 |
| 87613-16-16 | 1" | 25 | 16 | 47.6 | 38 | 9.6 |
| 87613-20-20 | 1.1/4" | 32 | 20 | 54 | 43.6 | 10.4 |
| 87613-24-24 | 1.1/2" | 40 | 24 | 63.5 | 50.8 | 12.7 |
| 87613-32-32 | 2" | 50 | 32 | 79.4 | 66.5 | 12.7 |
