3000PSI Flange Fittings
Item
Description
87312,87313
3000PSI Flange Fittings is SAE Flange 3000PSI for spiral hoses and for Interlock. YH Hydraulic is a professional manufacturer of 3000PSI flange fittings. It started to produce flange fittings since 2002. Over more than 15 years, YH Hydraulic has a great experience on producing it. And YH Hydraulic always pursue better and better quality, nicer and nicer outlooking. YH Hydraulic is able to offer this type from 1/2’’ to 3’’. Also it is able to offer OEM service for producing one piece fittings for different heavy machine and techincal support. From the below sheets, you could obtain technical data for 3000PSI straight flange fittings.

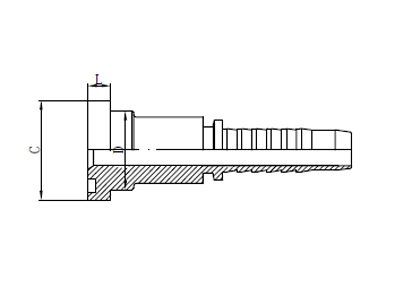

SAE FLANGE 3000PSI FOR SPIRAL HOSE
| 代号 | 法兰尺寸 | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | FLANGE SIZE | 公称内径DN | 标 号 DASH | C | D | L |
| 87312-08-08 | 1/2" | 12 | 8 | 30.2 | 23.9 | 7 |
| 87312-12-12 | 3/4" | 20 | 12 | 38.1 | 31.7 | 7 |
| 87312-16-16 | 1" | 25 | 16 | 44.4 | 38 | 8.2 |
| 87312-20-20 | 1.1/4" | 32 | 20 | 50.8 | 43.2 | 8.2 |
| 87312-24-24 | 1.1/2" | 40 | 24 | 60.3 | 50.3 | 8.2 |
| 87312-32-32 | 2" | 50 | 32 | 71.4 | 62.2 | 9.8 |

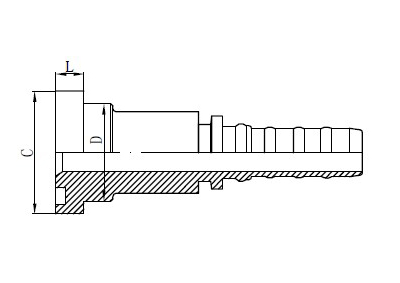

SAE FLANGE 3000PSI FOR INTERLOCK
| 代号 | 法兰尺寸 | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | |||
| PART NO. | FLANGE SIZE | 公称内径DN | 标 号 DASH | C | D | L |
| 87313-08-08 | 1/2" | 12 | 8 | 30.2 | 23.9 | 7 |
| 87313-12-12 | 3/4" | 20 | 12 | 38.1 | 31.7 | 7 |
| 87313-16-16 | 1" | 25 | 16 | 44.4 | 38 | 8.2 |
| 87313-20-20 | 1.1/4" | 32 | 20 | 50.8 | 43.2 | 8.2 |
| 87313-24-24 | 1.1/2" | 40 | 24 | 60.3 | 50.3 | 8.2 |
| 87313-32-32 | 2" | 50 | 32 | 71.4 | 62.2 | 9.8 |
