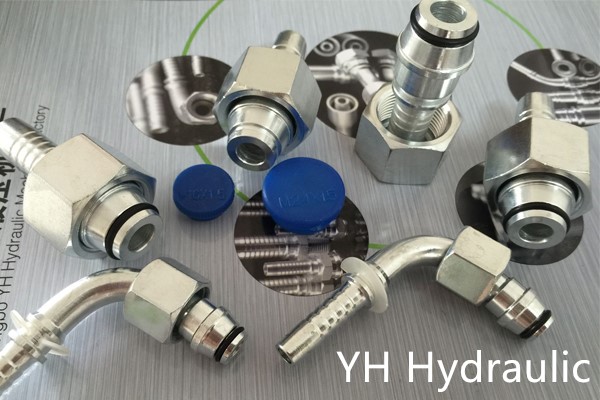

DKOL Hose Fittings
Item
Description
30411

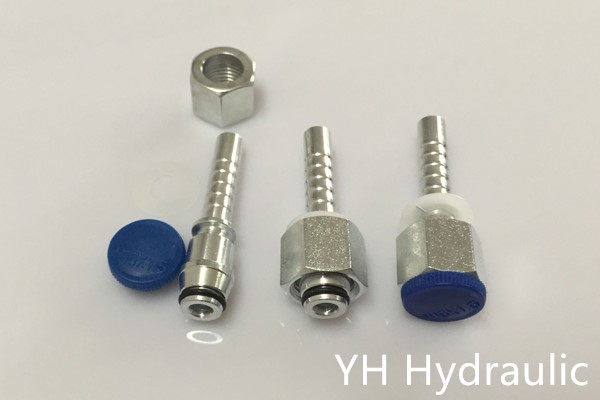

DKOL hose fittings is metric female 24°cone light type with o-ring DIN3865. 30411 DKOL hose fittings are made from 45 carbon steel and the nut is made from mild steel. YH Hydraulic offers different materials as well. 30411 hose fitting is a non-crimped type which refers to the connection way between the fitting body with its nut. If need to purchase the crimped type, the part no. Should be 20411. YH Hydraulic is able to offer different coatings like white zinc plated, yellow zinc plated and Cr3 plated. Below we have brief drawings for the crimped type and non-crimped type.

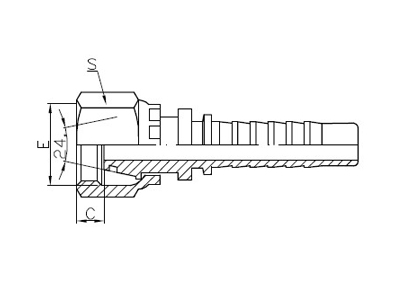

METRIC FEMALE 24°CONE L.T.WITH O-RING DIN3865(NON-CRIMP)

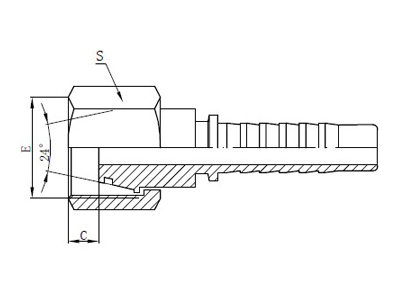

This is a crimped type:
| 代号 | 螺纹E | 胶管 HOSE BORE | 管子外径 | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | TUBE.O.D | C | S |
| 30411-14-04 | M14x1.5 | 6 | 4 | 8 | 2 | 17 |
| 30411-16-05 | M16x1.5 | 8 | 5 | 10 | 2 | 19 |
| 30411-18-06 | M18x1.5 | 10 | 6 | 12 | 2.5 | 22 |
| 30411-22-08 | M22x1.5 | 12 | 8 | 15 | 3 | 27 |
| 30411-26-10 | M26x1.5 | 16 | 10 | 18 | 3.5 | 32 |
| 30411-27-10 | M27X1.5 | 16 | 10 | 18 | 2.5 | 32 |
| 30411-30-12 | M30X2 | 20 | 12 | 22 | 3.5 | 36 |
| 30411-36-16 | M36X2 | 25 | 16 | 28 | 4.5 | 41 |
| 30411-45-20 | M45X2 | 32 | 20 | 35 | 5 | 55 |
| 30411-52-24 | M52X2 | 40 | 24 | 42 | 6 | 60 |
