DKOS Hose Fittings
DKOS hose fittings are metric female 24°cone heavy type with o-ring DIN3853. Different from 30411 fittings, it is a heavy type. DKOS hose fittings also have two ways in connection between fitting body and its nut which are called non-crimp type and crimped type. Usually, non-crimped type is much more popular then the crimped type no matter in Chinese market or among the oversea customers.YH Hydraulic is able to offer different thread sizes to different hose sizes. Below sheets are for your reference. If any more questions, pls feel free to contact the sales department.

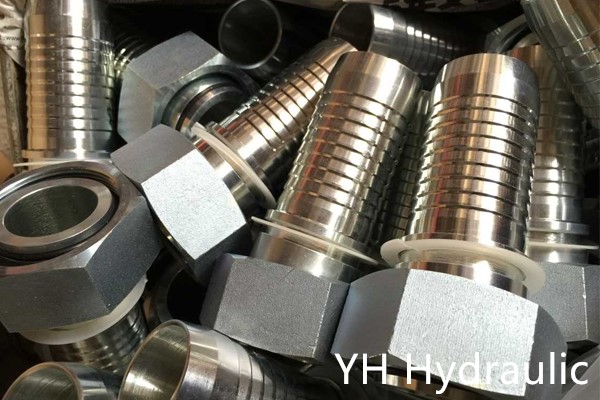

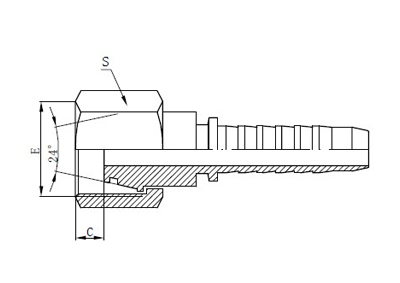

METRIC FEMALE 24°CONE H.T. WITH O-RING DIN3853(NON-CRIMP) for hose 1SN and 2SN

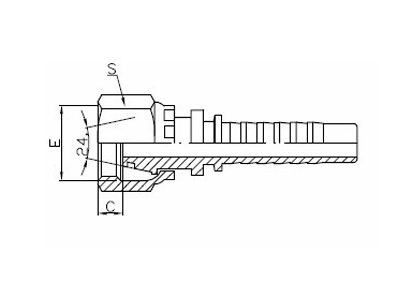

This is a crimped type:
| 代号 | 螺纹E | 胶管 HOSE BORE | 管子外径 | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | TUBE.O.D | C | S |
| 30511-14-04 | M14x1.5 | 6 | 4 | 6 | 2 | 17 |
| 30511-16-04 | M16x1.5 | 6 | 4 | 8 | 2 | 19 |
| 30511-18-04 | M18x1.5 | 6 | 4 | 10 | 2 | 22 |
| 30511-18-05 | M18x1.5 | 8 | 5 | 10 | 2 | 22 |
| 30511-20-05 | M20x1.5 | 8 | 5 | 12 | 3 | 24 |
| 30511-20-06 | M20X1.5 | 10 | 6 | 12 | 3 | 24 |
| 30511-22-06 | M22X1.5 | 10 | 6 | 14 | 3 | 27 |
| 30511-24-08 | M24X1.5 | 12 | 8 | 16 | 3 | 30 |
| 30511-30-10 | M30X2 | 16 | 10 | 20 | 3.4 | 36 |
| 30511-30-12 | M30X2 | 20 | 12 | 20 | 3.5 | 36 |
| 30511-36-12 | M36X2 | 20 | 12 | 25 | 3 | 41 |
| 30511-36-14 | M362 | 22 | 14 | 25 | 3 | 41 |
| 30511-36-16 | M36X2 | 25 | 16 | 25 | 3 | 41 |
| 30511-42-16 | M42X2 | 25 | 16 | 30 | 5 | 50 |
| 30511-52-20 | M52X2 | 32 | 20 | 38 | 6.5 | 60 |
| 30511-52-24 | M52X2 | 40 | 24 | 38 | 6.5 | 60 |

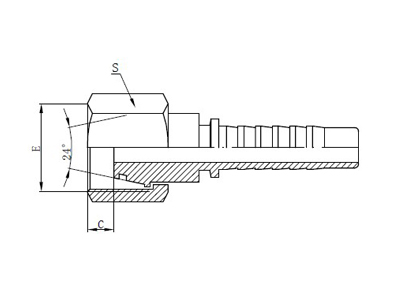

METRIC FEMALE 24°CONE H.T. WITH O-RING FOR SPIRAL HOSE like 4SP, 4SH, R12(NON-CRIMP)
| 代号 | 螺纹E | 胶管 HOSE BORE | 管子外径 | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | TUBE.O.D | C | S |
| 30512-24-08 | M24X1.5 | 12 | 8 | 16 | 3 | 30 |
| 30512-30-10 | M30X2 | 16 | 10 | 20 | 3.5 | 36 |
| 30512-30-12 | M30X2 | 20 | 12 | 20 | 3.5 | 36 |
| 30512-36-16 | M36X2 | 25 | 16 | 25 | 3 | 41 |
| 30512-42-16 | M42X2 | 25 | 16 | 30 | 5 | 50 |
| 30512-52-20 | M52X2 | 32 | 20 | 38 | 6.5 | 60 |
| 30512-52-24 | M52X2 | 40 | 24 | 38 | 6.5 | 60 |
