Hydraulic Hose Fittings
Item
Description
22611,22612,22613

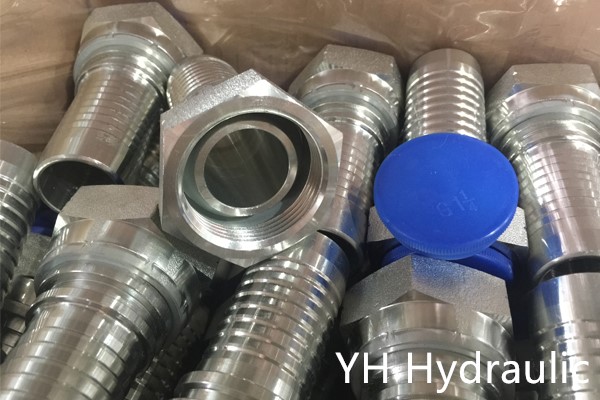

Hydraulic hose fittings BSP female 60 degrees cone straight type is used for hydraulic connection. The female fitting used to connect the bsp male fittings or bsp male adapter fittings. The material is carbon steel which is officially purchased from the steel company. YH Hydraulic keep a wide stock for hydraulic hose fittings BSP female from 1/4’’ to 2’’. And small quantity purchase is also welcomed. Regarding to the coating, YH Hydraulic is usually offering white zinc plated to the oversea customers. And it has a good packing way to protect from the rusting. Below are the detailed data for this type.
BSP Female fittings used for 1SN and 2SN hose
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S |
| 22611-04-04 | G1/4"X19 | 6 | 4 | 5.5 | 19 |
| 22611-06-06 | G3/8"X19 | 10 | 6 | 6.5 | 22 |
| 22611-08-08 | G1/2"X14 | 12 | 8 | 8 | 27 |
| 22611-10-10 | G5/8"X14 | 16 | 10 | 10.5 | 30 |
| 22611-12-12 | G3/4"X14 | 20 | 12 | 11.5 | 32 |
| 22611-16-16 | G1"X11 | 25 | 16 | 11.5 | 41 |
| 22611-20-20 | G1.1/4"X11 | 32 | 20 | 12 | 50 |
| 22611-24-24 | G1.1/2"X11 | 40 | 24 | 13 | 55 |
| 22611-32-32 | G2"X11 | 50 | 32 | 16 | 70 |
BSP Female fittings used for 4SP, 4SH, R12 hose
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S |
| 22612-08-08 | G1/2"X14 | 12 | 8 | 8 | 27 |
| 22612-10-10 | G5/8"X14 | 16 | 10 | 10.5 | 30 |
| 22612-12-12 | G3/4"X14 | 20 | 12 | 11.5 | 32 |
| 22612-16-16 | G1"X11 | 25 | 16 | 11.5 | 41 |
| 22612-20-20 | G1.1/4"X11 | 32 | 20 | 12 | 50 |
| 22612-24-24 | G1.1/2"X11 | 40 | 24 | 13 | 55 |
| 22612-32-32 | G2"X11 | 50 | 32 | 16 | 70 |
BSP FEMALE 60°CONE SEAT FOR INTERLOCK
| 代号 | 螺纹E THREAD E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||
| PART NO. | 公称内径DN | 标 号 DASH | C | S | |
| 22613-08-08 | G1/2"X14 | 12 | 8 | 8 | 27 |
| 22613-12-12 | G3/4"X14 | 20 | 12 | 11.5 | 32 |
| 22613-16-16 | G1"X11 | 25 | 16 | 11.5 | 41 |
| 22613-20-20 | G1¼"X11 | 32 | 20 | 12 | 50 |
| 22613-24-24 | G1½"X11 | 40 | 24 | 13 | 55 |
| 22613-32-32 | G2"X11 | 50 | 32 | 16 | 70 |
