JIC Female Hose Fittings

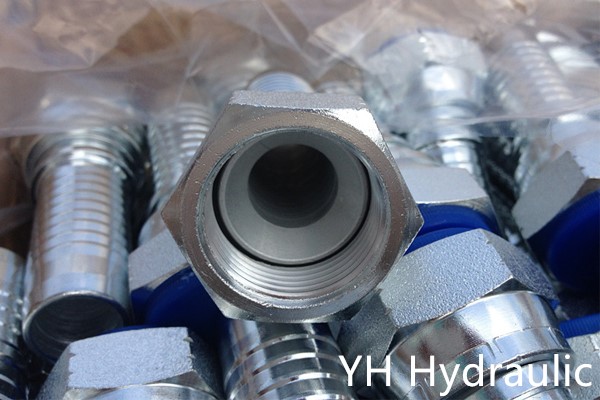

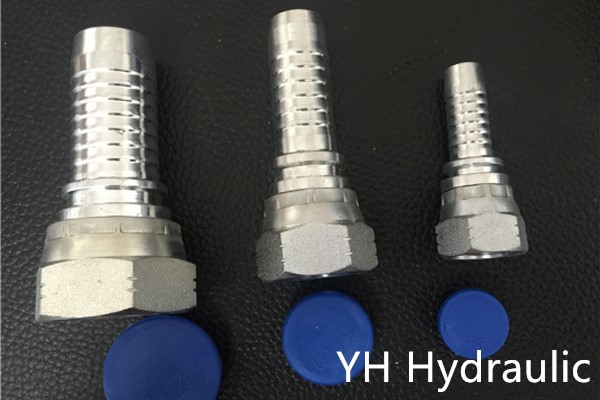

JIC female hose fittings which thread type is JIC female 74 degrees or 37 degrees cone seat are popularly welcomed fittings from customers over the world. JIC female hose fittings are made from carbon steel regularly but we could accept the stainless steel material as well. These fittings are produced for hoses from 3/16’’ to 2’’. For the straight fittings, YH Hydraulic is able to make until 3’’. These fittings has three different tails for one wire hoses and two wire hoses like 1SN hose and 2SN hose, four wire hoses like 4SP hoses. It has a type which is called Interlock fittings. From the below sheets, the details could be check.

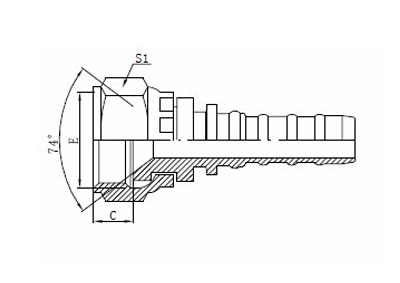

JIC Female fittings used for 1SN and 2SN hose
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S1 |
| 26711-04-04 | 7/16"X20 | 6 | 4 | 8.5 | 17 |
| 26711-05-04 | 1/2"X20 | 6 | 4 | 9.5 | 19 |
| 26711-05-05 | 1/2"X20 | 8 | 5 | 9.5 | 19 |
| 26711-06-04 | 9/16"X18 | 6 | 4 | 10 | 19 |
| 26711-06-05 | 9/16"X18 | 8 | 5 | 10 | 19 |
| 26711-06-06 | 9/16"X18 | 10 | 6 | 10 | 19 |
| 26711-08-06 | 3/4"X16 | 10 | 6 | 11 | 24 |
| 26711-08-08 | 3/4"X16 | 12 | 8 | 11 | 24 |
| 26711-08-10 | 3/4"X16 | 16 | 10 | 11 | 24 |
| 26711-10-06 | 7/8"X14 | 10 | 6 | 11 | 27 |
| 26711-10-08 | 7/8"X18 | 12 | 8 | 11 | 27 |
| 26711-10-10 | 7/8"X18 | 16 | 10 | 11 | 27 |
| 26711-10-12 | 7/8"X18 | 20 | 12 | 11 | 27 |
| 26711-12-08 | 1.1/16"X12 | 12 | 8 | 13.5 | 32 |
| 26711-12-10 | 1.1/16"X12 | 16 | 10 | 13.5 | 32 |
| 26711-12-12 | 1.1/16"X12 | 20 | 12 | 13.5 | 32 |
| 26711-12-16 | 1.1/16"X12 | 25 | 16 | 13.5 | 32 |
| 26711-14-12 | 1.3/16"X12 | 20 | 12 | 14.5 | 36 |
| 26711-16-12 | 1.5/16"X12 | 20 | 12 | 14.5 | 41 |
| 26711-16-14 | 1.5/16"X12 | 22 | 14 | 14.5 | 41 |
| 26711-16-16 | 1.5/16"X12 | 25 | 16 | 14.5 | 41 |
| 26711-16-20 | 1.5/16"X12 | 32 | 20 | 14.5 | 41 |
| 26711-20-16 | 1.5/8"X12 | 25 | 16 | 15.5 | 50 |
| 26711-20-20 | 1.5/8"X12 | 32 | 20 | 15.5 | 50 |
| 26711-24-20 | 1.7/8"X12 | 32 | 20 | 18.5 | 55 |
| 26711-24-24 | 1.7/8"X12 | 40 | 24 | 18.5 | 55 |
| 26711-32-32 | 2.1/2"X12 | 50 | 32 | 24.5 | 75 |

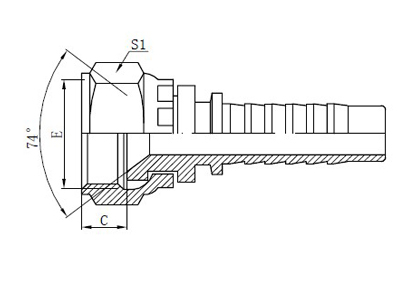

JIC Female fittings used for 4SP, 4SH, R12 hose
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S1 |
| 26712-08-08 | 3/4"X16 | 12 | 8 | 11 | 24 |
| 26712-10-10 | 7/8"X14 | 16 | 10 | 11 | 27 |
| 26712-12-12 | 1.1/16"X12 | 20 | 12 | 13.5 | 32 |
| 26712-16-16 | 1.5/16"X12 | 25 | 16 | 14.5 | 41 |
| 26712-20-20 | 1.5/8"X12 | 32 | 20 | 15.5 | 50 |
| 26712-24-24 | 1.7/8"X12 | 40 | 24 | 18.5 | 55 |
| 26712-32-32 | 2.1/2"X12 | 50 | 32 | 24.5 | 75 |

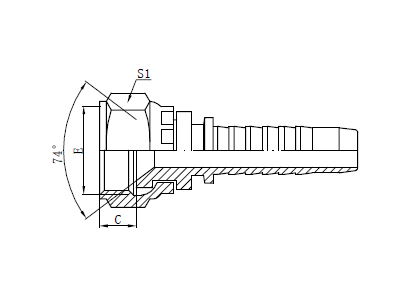

JIC FEMALE 74°CONE SEAT FOR INTERLOCK
| 代号 | 螺纹E | 胶管 HOSE BORE | 尺 寸 DIMENSIONS | ||
| PART NO. | THREAD E | 公称内径DN | 标 号 DASH | C | S |
| 26713-08-08 | 3/4"X16 | 12 | 8 | 11 | 24 |
| 26713-12-12 | 1.1/16"X12 | 20 | 12 | 13.5 | 32 |
| 26713-16-16 | 1.5/16"X12 | 25 | 16 | 14.5 | 41 |
| 26713-20-20 | 1.5/8"X12 | 32 | 20 | 15.5 | 50 |
| 26713-24-24 | 1.7/8"X12 | 40 | 24 | 18.5 | 55 |
| 26713-32-32 | 2.1/2"X12 | 50 | 32 | 24.5 | 75 |
